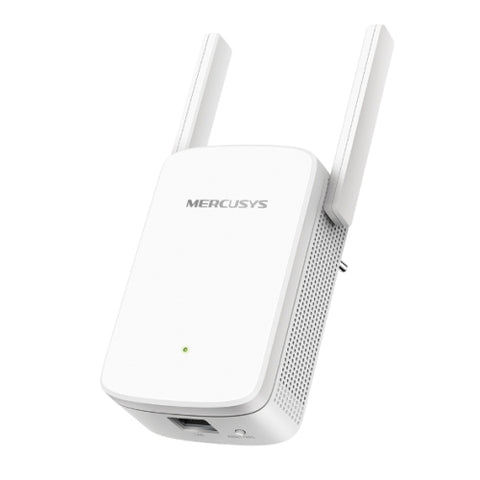

Mercusys (ME30) AC1200 (300+867) Dual Band WiFi Range Extender, 10/100 Port, AP Mode
Product Description
Mercusys (ME30) AC1200 (300+867) Dual Band WiFi Range Extender, 10/100 Port, AP Mode
Primary Function
Range Extender
Max Signal Rate
867 Mbps
Dual Band
Yes
Interface(s)
1 x 10/100Mbps RJ45 Port
Wireless Standards
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Antenna
2 x External Antennas
Button(s)
RESET/WPS Button
Power Supply
Wall plug
Power Consumption
9.2 W
Dimensions (W x D x H)
112 x 84.7 x 39 mm
Weatherproof
No
Frequency
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mpbs
2.4GHz: Up to 300Mpbs
Reception Sensitivity
5 GHz: 11ac HT80 MCS9 < -63 dBm
2.4 GHz: 11n HT40 MCS7 < -70 dBm
2.4 GHz: 11n HT40 MCS7 < -70 dBm
Wireless Security
WPA-PSK/WPA2-PSK
Advanced Functions
See Overview
Environment (°C)
Operating Temperature: 0C~40C (32F~104F)
Operating Humidity: 10%~90% Non-Condensing
Operating Humidity: 10%~90% Non-Condensing
Package Contents
Wi-Fi Range Extender (ME30)
Quick Installation Guide
Quick Installation Guide
Package Type
Retail
Package Weight
0.2690 kg
Warranty
3 Years
AC1200 Wi-Fi Range Extender
- Eliminate WiFi Dead Zones - Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly
- AC1200 Dual Band WiFi - Keep your whole home connected with strong WiFi expansion at a combined speed of up to 1.2 Gbps
- Easy One-Touch Setup - Simply press the WPS button to expand your WiFi coverage in seconds
- Signal Indicator - Multicolor LED helps you find the right location for your range extender for the best WiFi extension
- Fast 10/100 Mbps Port - Provides speedy wired connections for PCs, IPTVs, and game consoles
- Works with Any Router or Wireless Access Point
Extend WiFi to Where You Need It Most
The ME30 wall-mounted range extender with adjustable high-gain antennas easily expands your Wi-Fi router's coverage, letting you finally eliminate Wi-Fi dead zones from your home. Enjoy the high speed expansion WiFi wherever you need.
Streaming at Full Speed All The Time
AC1200 High-Speed Wi-Fi
Enjoy a fast extended Wi-Fi anywhere up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz), ideal for 4K streaming and online gaming.
Adaptive Path Selection
The ME30 keeps your network running at top-speed by intelligently choosing the best available route and band for your data.
Easy One-Touch Setup
Press the WPS button on your router and the WPS button on your extender to expand your Wi-Fi coverage in seconds.
Step 1: Press the WPS button on your router and the ME30
Step 2: Relocate the ME30 to the best place with smart signal indicator
Built-In Access Point Mode
ME30 is more than just a WiFi range extender. Connect your wired internet connection to the ME30 via Ethernet cable to turn it into a dual band WiFi access point.
